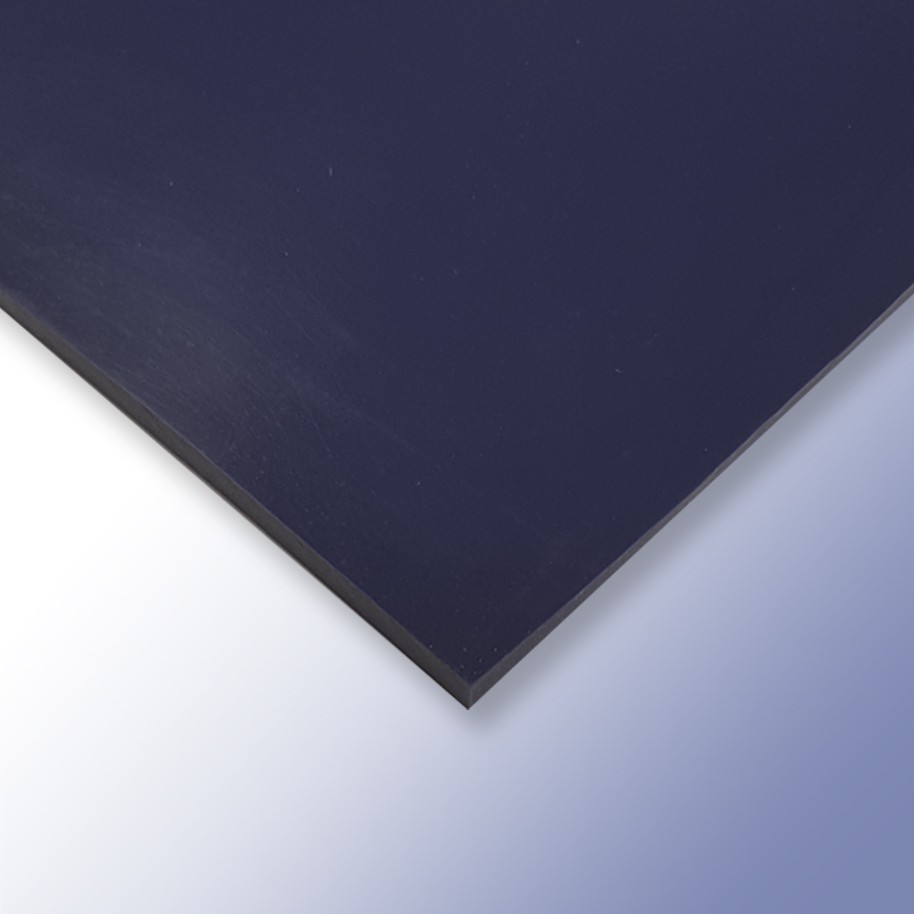

Electrically Conductive Silicone Sheet

Not Available to Buy Online - Please contact us for more information.

 +44 (0) 1420 474123
 sales@polymax.co.uk

Be the first to review this product

Quick Overview

Carbon black filled silicone material that can conduct a low electrical amperage.

Rubber sheet tolerance allowance - width 3%, length 5%.
Article No. Thickness
(mm)
Tolerance
(±mm)
Volume Resistivity
ohms-cm
3043943 0.500.155
3043944 0.800.25
3043945 1.000.35
3043946 1.600.35
3043947 2.000.35
3043948 3.200.35

Details

Our specially designed electrically conductive silicone solid sheeting is perfectly suited to provide superior shielding from radio frequency and electromagnetic interference. Acting as a low amperage conductor, these 915mm wide sheets will also give you far greater protection against electrostatic discharge, with the addition of also being flame-retardant.

This rubber sheeting is available with pressure sensitive adhesive backing. Polymax also provide a fabrication service to create gaskets or strips - please call us for more information.

Additional Information

Colour Blue
Material Silicone (VMQ)
Width (mm) 915.00
Hardness (Shore A) 65
Maximum Temperature (°C) 260.00
Minimum Temperature (°C) -54.00
Density (g/cm³) 1.17
Tensile Strength (MPa) 5.30
Elongation at break (%) 325.00
Compression Set (%) 15.00
Compression Set Testing Parameters 22hrs @100

Further Information (File Downloads)
